UV Wastewater Treatment

Make water count with UVO3’s innovative 3G effluent disinfection modules. Our cutting-edge ultraviolet technology provides the finishing touch to your wastewater treatment system needs, ensuring safe, clean discharge with unparalleled efficiency.

Key benefits of our 3G UV units

• Chemical-Free Treatment
  Our UV disinfection technology eliminates pathogens without the need for chemicals, ensuring no harmful by-products are created and no additional substances are added to your water.
• Rapid Disinfection
  Short contact time allows for efficient treatment processes with minimal retention requirements.
• Powerful Performance
  With a UV dosage exceeding 55 mJ/cm², our units achieve a 99.9% bacterial kill rate, effectively neutralising harmful bacteria, viruses, and parasites.
• Energy Efficient Design
  Starting at just 45W per module, our systems deliver exceptional disinfection performance whilst keeping energy consumption to a minimum.
• Maintenance-Friendly
  No moving parts means less wear and tear, while our unique anti-fouling lamp module reduces maintenance requirements and extends operational life.
• Minimal Hydraulic Impact
  With a pressure drop of less than 0.5″ of water, our units integrate seamlessly into your existing system without disrupting flow rates.

Versatile applications

UVO3’s 3G effluent disinfection modules are ideal for:

• Residential on-site wastewater treatment systems
• Small to medium commercial properties not connected to municipal sewers
• Rural and remote locations with limited infrastructure
• Environmentally sensitive areas requiring high-quality discharge
• Applications where water reuse is planned
• Sites with space constraints or varying treatment needs

Flexible, modular design

Standard on-site UV wastewater treatment units generally do a good job of removing suspended solids, BOD, and total nitrogen. However, whilst they reduce the concentration of pathogenic bacteria, viruses, and parasites, additional disinfection is often required—that’s where our UV technology excels.

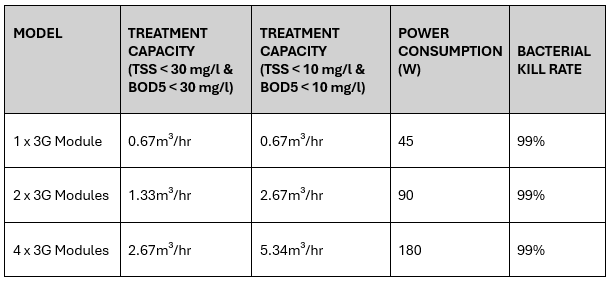

Our modular design allows 3G effluent disinfection modules to be easily joined together in series or parallel configurations, providing scalable treatment capacity to meet your specific requirements:

Intelligently engineered components

• IP65 Rated Electrical Control Box
  Weather-resistant control unit featuring ‘lamp on’ indicator and volt-free alarm contacts for seamless integration with your monitoring systems.

• Adjustable Riser Tube
  Height can be adjusted to suit site ground levels, providing installation flexibility for varying site conditions.

• Unique Anti-Fouling Lamp Module
  Specially designed to minimise fouling and maintain optimal disinfection performance throughout the operational life of the system.

• Buried UV Treatment Chamber
  Discreet, below-ground installation that doesn’t compromise on treatment effectiveness.

Why choose UVO3’s UV wastewater treatment systems?

When it comes to wastewater treatment, ultraviolet light is one of the most effective disinfection methods available today. Our 3G UV units offer significant advantages over alternative disinfection techniques, combining powerful performance with operational simplicity and minimal environmental impact.

Whether you’re looking to upgrade an existing system or designing a new installation, our 3G effluent disinfection modules provide the perfect solution for your UV wastewater treatment needs.
